•Medidas a pedido, solicite disponibilidad y especificaciones de acoplamientos.

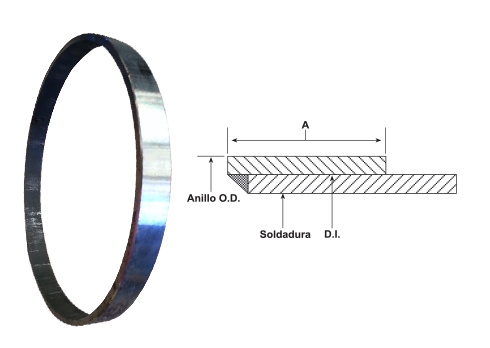

Anillo tipo "A" | Acople | |||||
DN pulg. |
D.EXT mm. |
OD Told + 1,5 -0,76 mm |
Asiento Empaq A +-0,76 |
D.Int. D.I. mm |
Máx Pres Trabajo |
Estilo N° |
4 | 114,3 | 122,2 | 15,9 | 117,3 | 450 | 22 |
6 | 168,3 | 177,8 | 15,9 | 171,3 | 450 | 22 |
8 | 219,1 | 232,1 | 20,6 | 222,1 | 200 | 22 |
10 | 273,0 | 286 | 20,6 | 276 | 300 | 22 |
12 | 323,9 | 336,5 | 20,6 | 327 | 300 | 22 |
14 | 355,6 | 368,5 | 23,8 | 358,6 | 250 | 22 |
16 | 406,4 | 424 | 26,2 | 408 | 200 | 22 |
18 | 457,2 | 470 | 25,4 | 460,2 | 200 | 22 |
20 | 508,0 | 532,6 | 31,8 | 511 | 200 | 22 |
22 | 558,0 | 577,4 | 30 | 561,8 | 200 | 22 |
24 | 609,6 | 628,6 | 28,7 | 613 | 200 | 22 |
30 | 762,0 | 787,4 | 31,8 | 765 | 150 | 22 |
36 | 914,4 | 965,2 | 41,4 | 919 | 90 | 22 |
